Fan and Pump 1hp to 220hp 20hp 25hp 30hp Frequency Inverter Factory Manufacturer 220V 1.5kw 2.2kw Single Phase VFD Inverter Chinese Inverter

1 Unit
MOQ
$140.00(1 - 4 Units) $130.00(>=5 Units)
Preis
Fan and Pump 1hp to 220hp 20hp 25hp 30hp Frequency Inverter Factory Manufacturer 220V 1.5kw 2.2kw Single Phase VFD Inverter Chinese Inverter
Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat
Eigenschaften
Technische Daten
Network: 485 communication
Customized support: The shape, size, LOGO can be customized. OEM
Model Number: FST-500-2R2ST2
Type: DC/AC Inverters, AC drive
Output Type: Single, Triple
Output Current: Rated current
Output Frequency: 50/60HZ
Size: 12*23*16 CM or bigger
Weight: About 3.5 KG or more
Certificate: CE CCC ISO9001
Product name: Frequency Inverter
Warranty: 18 Months
Color: Grey
Application: fan and pump
Protection: Overload
Output waveform: SPMW Sinusoidal Pulse Width Modulation
Rated power: 2.2 kw
Display: LED
Efficiency: 97%
Control mode: VF or SVC
Grundinformation
Zertifizierung: CE CCC ISO9001
Model Number: FST-500-2R2ST2
Zahlung und Versand AGB
Packaging Details: carton packing
Produkt-Beschreibung
Product Description
Optimized layout design makes the machine to be smaller and lighter.
High anti-interference ability due to the circuit separation for strong current and weak currrent.
Combined module for 15KW or below with high reliability
Application:Pump and Fan & Conveyor & compressor & Main shaft of CNC & Central air-conditioner
Ball mill machine & Fountain

Project Case

Software features:

G/P are in one for extensive application
3 kinds of control:V/F control,SVC control,torque control.
High starting torque:180%,0.5Hz.
Multi-step speed control,simple PLC control and PID control.
Programmable input and output terminals.
Non-stop operation at momentary power failture
Multiple sources of frequency reference
Automatic Voltage regulation (AVR)
Frequency skip function
Oscillation suppression function.

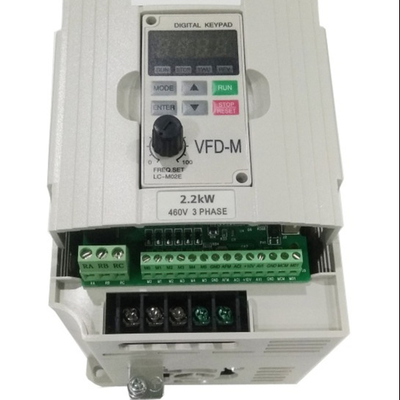

Detailed Images
Product detail drawing

Input power terminal R,S,T have no phase sequence and they can randomly changed and connected.
Output terminal U,V,W are connected to motors.When the inverter is forward,the motor is reversal,we can swap any two of U,V,W terminals.
Output terminal U,V,W can not be connected to AC power to avoid damaging the inverter.Grounding terminal should be grounded correctly,220V: the third type grounding,400V:special grounding.


Product Presentation


Programming key
Confirm key
Enter or exit of first level menu
Gradually enter menu screen, set parameters to confirm
UP increasing key

DOWN decreasing
Increment of data and function code
Decrement of data and function code


Right shift key
When in the downtime or operation interface,it can shift right to choose display parameters in a circle;when modifying parameters, it can select parameter;s modified bit.
Operation key
When under keyboard operation , it can be used


stop/reset key

under the running state,it can stop operation by F7.02,Under fault alarm condition,all control mode can be reset by this key.

quick multifunction key

The funtion of this key is confirmed by F7.01
0:clear UP/DOWN settings,clear the frequency value set by UP/DOWN
1:jog operation
2:reversing switch key

Combination
Press RUN and STOP/RST at the same time,the inverter will stop free


Model No.
Power/kw
Rated input current/A
Adaptive Motor/kw
Brake unit
DC reactor
3 phases 380V 50/60Hz
FST-610-0R7T4
0.75
2.5
0.75
Standard Built-in
N/A
FST-610-1R5G/2R2PT4
1.5
3.7
1.5
N/A
FST-610-2R2G/3R7PT4
2.2
5
2.2
N/A
FST-610-3R7G/5R5PT4
4
9
4
N/A
FST-610-5R5G/7R5PT4
5.5
13
5.5
N/A
FST-610-7R5G/7R5PT4
7.5
17
7.5
N/A
FST-610-7R5G/011PT4
7.5
17
7.5
N/A
FST-610-011G/015PT4
11
25
11
N/A
FST-610-015G/018PT4
15
32
15
N/A
FST-610-018G/022PT4
18.5
37
18.5
Optional Built-in
N/A
FST-610-022G/030PT4
22
45
22
N/A
FST-610-030G/037PT4
30
60
30
N/A
FST-610-037G/045PT4
37
75
37
N/A
FST-610-045G/055PT4
45
90
45
N/A
FST-610-055G/075PT4
55
110
55
N/A
FST-610-075G/093PT4
75
150
75
N/A
FST-610-093G/110PT4
N/A
FST-610-110G/132PT4
110
210
110
N/A
FST-610-132G/160PT4
132
250
132
N/A
FST-610-160G/185PT4
160
300
160
N/A
FST-610-185G/200PT4
185
340
185
N/A
FST-610-200G/220PT4
200
380
200
Standard Built-in
FST-610-220G/250PT4
220
415
220
FST-610-250G/280PT4
250
470
250
FST-610-280G/315PT4
280
520
280
FST-610-315G/350PT4
315
600
315
FST-610-350G/400PT4
350
640
350
FST-610-400G/450PT4
400
690
400
FST-610-500G/560PT4
500
860
500
FST-610-560G/630PT4
560
950
560
FST-610-630T4
630
1100
630
Certificate

Company Introduction
Anyhertz, whose predecessor is Shenzhen Firstech Co.,Ltd., was established in 2005, is committed to be the globally leading and
respected provider for products and services of industrial automation. It has always been dedicated to the R&D, manufacture and
marketing of AC drive products. In the year of 2011, a team of influential experts in the industry joined in the company. And the
company entered into a new period of rapid development with its new name, Anyhertz Drive (Shenzhen) Co.,Ltd
So far, Anyhertz products include VF control inverter (FST-650 ), sensor-less vector control inverter(FST-610), closed loop flux
vector inverters (FST-800), and economic and compact inverter (FST-500), medium voltage inverters (FST-700,660V-690V), and
four-quadrant reversible inverter(FST-900), which are widely applied to textile, printing, plastics, pharmacy, cable, crane,
extruder, refrigerator, ball mill, water supply, civil engineering, mining, petrochemical and HVAC etc. By virtue of the most
advanced designing concept and technology, Anyhertz has constantly perfected the performance of the products. Meanwhile, we are
strictly operating in accordance with ISO9001:2000 Quality Management System. All of products have won CCC and CE approval.

Packing&Shipping
FAQ
Q1. Can I get some samples?
A1: Yes, sample order is available for quality check and market test.

Q2. What's the price terms you can offer for us?
A2: We can accept EXW, FOB, CIF and so on.

Q3. What's the delivery time?
A3: It usually takes about 3-5 working days for stock and 10-15 days for large quantity.

Q4. What's your payment terms?
A4: We usually accept all kinds of payment terms. Such as T/T, Western Union, PayPal, Cash.

Q5. What's your warranty time?
A5: We offer 12 months warranty time.

Q6. How does your factory do the quality control?
A6: Quality is priority. We always attach the importance to quality control from the beginning to the end of the production. Every
product will be fully assembled and carefully tested before packing and shipping.

Q7. What is the standard of package?
A7: Export standard package or special package according to customer requirement

Q8. What kind of certificate you have ?
A8: We have ISO9000, CE, CCC.

Q9. Where is your main market for your products?
A9: Most of our products are exported to Southeast Asia, Africa and Mid East ect.
