Startseite /Produkte/Niederfrequenzinverter/solar power system home 6kw low frequency hybrid solar inverter solar power hybrid inverter bulit-in mppt 6kw

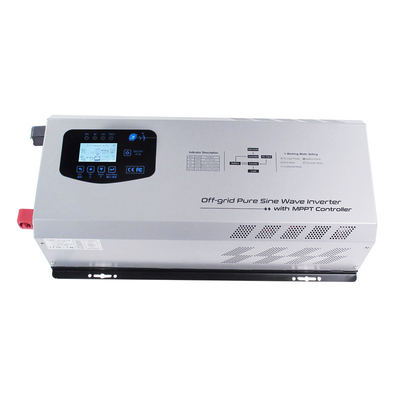

solar power system home 6kw low frequency hybrid solar inverter solar power hybrid inverter bulit-in mppt 6kw

10.0 pieces
MOQ
solar power system home 6kw low frequency hybrid solar inverter solar power hybrid inverter bulit-in mppt 6kw
Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat
Eigenschaften
Technische Daten
Model Number: FTS-602
Input Voltage: 24V/48V
Output Voltage: 220V
Output Current: 30A
Output Frequency: 50Hz or 60Hz
Output Type: Single
Size: 780*380*280mm
Type: DC/AC Inverters
Inverter Efficiency: >92%
Certificate: FCC,CE,EMC, RoHS
Warranty: 1 Year
Weight: 36KG
Application: Solar Power System Home
Display: LCD & LED
Protection: Overload/voltage Short Circuit Protection
MPPT Efficiency: 99%
Communication: RS485/WiFi
Battery type: Lead Acid \ Lithium \ Gel
Inverter type: Off Hybrid
Color: Silver
Transfer Time: 5MS
Controller: Mppt 30/50/60A
Grundinformation
Zertifizierung: FCC,CE,EMC, RoHS
Model Number: FTS-602
Zahlung und Versand AGB
Packaging Details: 1 set/box or carton, with yellow standard export big carton;
Supply Ability: 10000 Piece/Pieces per Month
Produkt-Beschreibung
Products Description
1000w 2000w 3000w 4000w 5000watts 6000w 7000w HYBRID solar pure sine wave inverter Off grid solar inverter with MPPT and AC charger
FTS series Hybrid Solar power inverter
1. Off grid low frequency Pure sine wave solar inverter
2. Range from 1kw ~7kw
3. Transfer efficiency >90%
4. Switch time <4ms
5. 30A 50A 60A MPPT Ccharger/35A AC charger / AVR stablizer / intelligent cooling system
6. Using latest toroidal transformer
7. Triple surge power
8. Intelligent DSP control chipset.
Product Paramenters
MODEL
FTS-102
FTS-202
FTS-302
FTS-402
FTS-502
FTS-602
RATED POWER
1KW
2KW
3KW
4KW
5KW
6KW
SURGE POWER
3KW
6KW
9KW
12KW
15KW
18KW
INPUT
VOLTAGE
220VAC
SELECTABLE VOLTAGE RANGE
145-265VAC
170-265VAC
FREQUENCY RANGE
50HZ/60HZ±5HZ
OUTPUT
AC VOLTAGE REGULATION(BATT. MODE)
(DC BATT.MODE)220VAC±3%
TANSFER TIME
≤5ms
WAVE FORM
PURE SINE WAVE
BATTERY
BATTERY VOLTAGE
12V/24V
24V/48V
FLOATING CHARGE VOLTAGE
13.8V(12V)/27.6V(24V)/55.2V(48V)
OVERCHARGE PROTECTION
17V(12V)/34V(24V)/68V(48V)
SOLAR CHARGE & AC CHARGER
MAXIMUM PV ARRAY OPEN CIRCUIT VOLTAGE
150VDC
MAXIMUM PV ARRAY POWER
420W(12V)/840W(24V)
1400W(12V)/2800W(48V)
STANDBY POWER COMSUMPTION
15W
MAXIMUM AC CHARGE CURRENT
35A
MAXIMUM SOLAR CHARGE CURRENT
30/50A(OPTIONAL)
30-60A(OPTIONAL)
MAXIMUM CHARGING CURRENT
85A
95A
PHYSICAL
DIMENSION,D*W*H(MM)
530*335*250MM
740*335*275MM
G.W.
18.8
24.8
28.3
34.9
36.9
38.9
ENVIRONMENT
HUMIDITY
0~95%（NO CONDESNSATION)
OPERATING TEMPERATURE
0~60℃
STORAGE TEMPERATURE
0~60℃
*PRODUCT SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT FURTHER NOTICE
Product packaging
Company Profile
FAQ

Q1: Does your company also provide other solar products except Pure Sine Wave Inverter?
A1: Yes, we also provide other solar products, like MPPT Solar Controller, poly solar panel, off grid solar inverter, on grid
inverter, battery, portable solar system, solar charger and other accesories
related to the solar power system.

Q2: How to choose a right inverter?
A2: Tell us your demand, then our sales will recommend a suitable inverter to you.

Q3: How about the delivery time?
A3: 5 days for sample; 7-15 days for bulk order.

Q4: What is the warranty of inverter?
A4: 1 year warranty.

Q5: How to solve the technical problem?
A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.
